FIAT 500 Brake Conversion Kit - Wilwood Dynapro 6 Piston Front Brake Kit (Red Powder Coat Calipers / SRP Drilled & Slotted Rotors)
Drive now, Pay later with Affirm!
or with PayPal
Both options will be available upon checkout.
Now in stock!

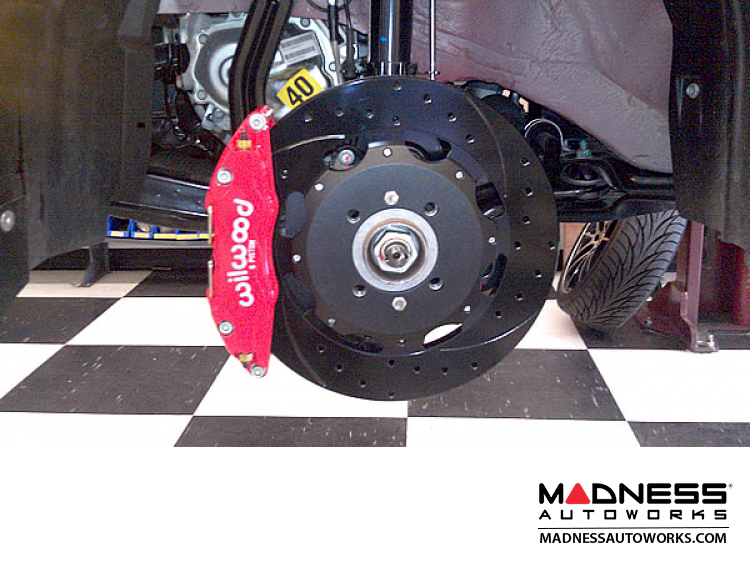

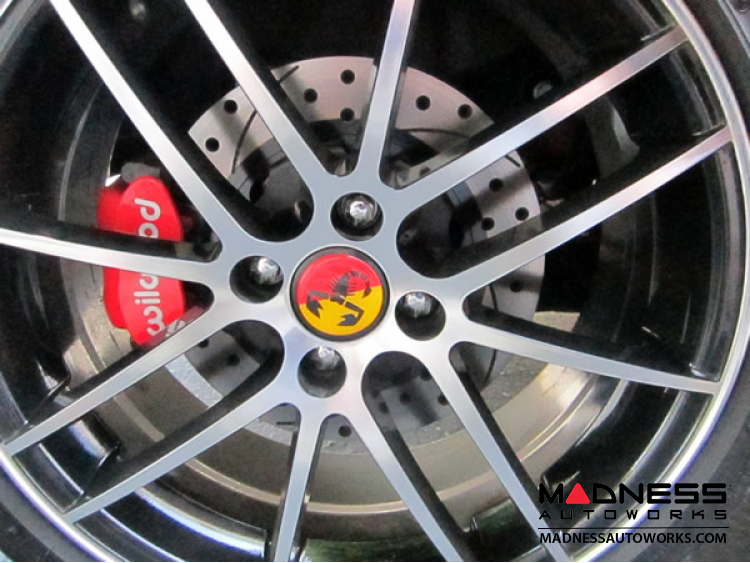

Get improved stopping power with this Wilwood Front Brake Kit for the FIAT 500!
This kit will fit all FIAT 500 ABARTH, Sport, Lounge and Pop Models.

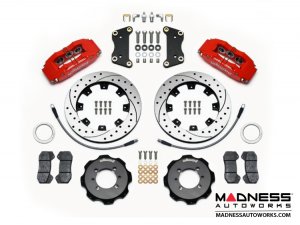

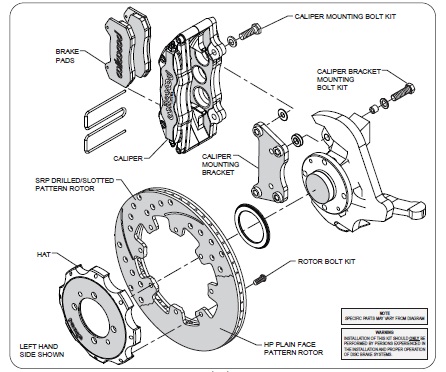

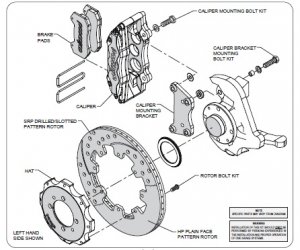

This Wilwood Brake Upgrade Kit features:
- Two 6 Piston Red Powder Coated Billet Brake Calipers
- Two 2 Piece, Cross Drilled, Slotted and Vented Brake Rotors - 12"
- Performance Brake Pads
- Steel Braided Brake Lines
- Adapter brackets and Hardware

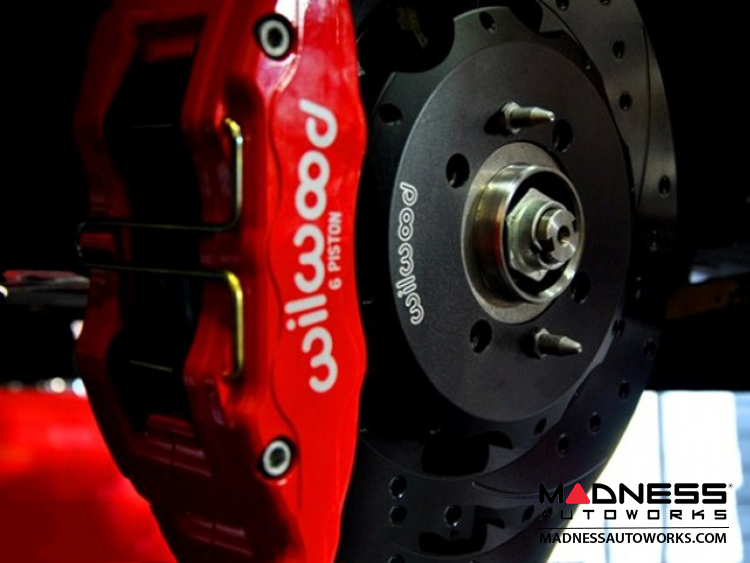

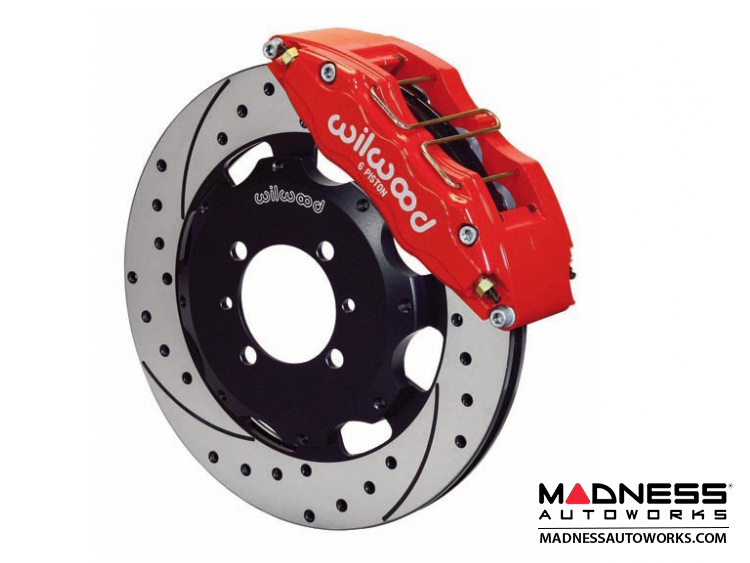

DynaPro 6 Billet Lug Mount Calipers:
Performance advantages of a larger pad compared to four piston calipers
Differential bore six piston design generates big brake clamping force with balanced pad loading for even wear in all sustained high heat, high load conditions
DynaPro 6 calipers use stainless pistons to resist corrosion and reduce heat transfer from the pads
High temperature, fluid resistant high gloss black finish is standard, with red and other Wilwood colors available (extra cost as a special order)

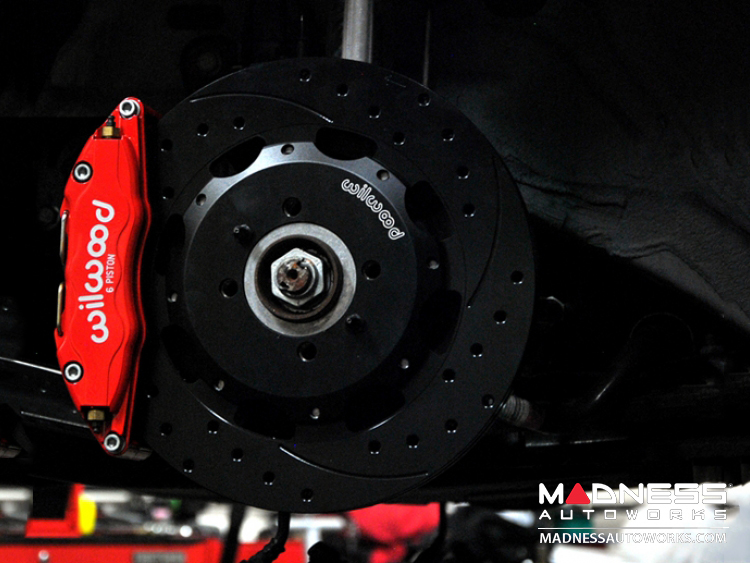

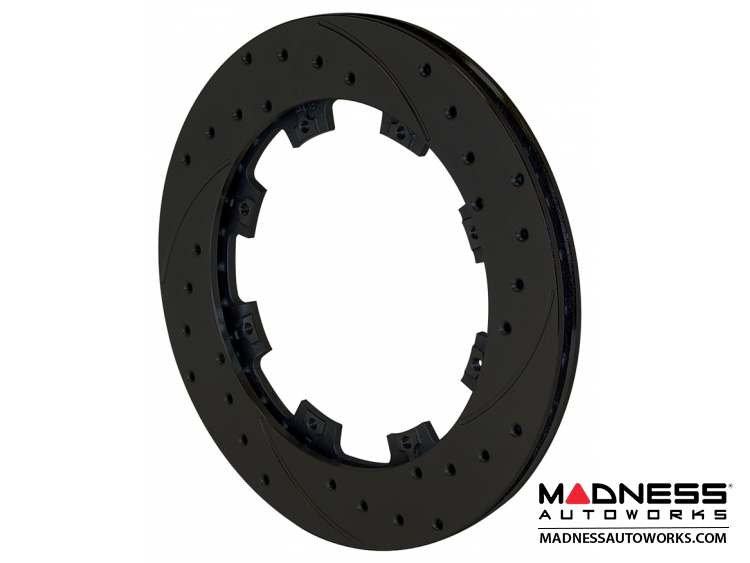

12.19” Diameter Rotors
Directional vane rotors provide the highest degree of cooling efficiency with increased surface area and improved air circulation between the rotor faces.
Rotors are cast from premium grade, long grain carbon iron.

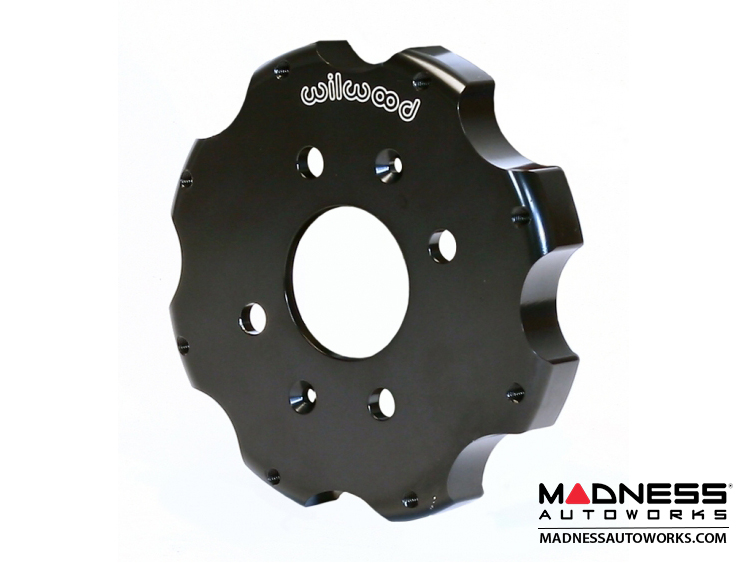

Forged Aluminum GT Mounting Hats
Forged aluminum rotor mount hats help reduce weight with the strength to handle the exceptional brake torque delivered by the DynaPro 6 caliper.
Black anodized finish resists corrosion while adding to the aggressive competition look inside the wheel.
Wilwood BP-10 “Smart Pads”
All kits include BP-10 metallic-composite compound "Smart Pads". BP-10 delivers the increased friction; higher fade resistance, and longer wear of an entry-level track pad, with virtually noise and dust free performance for the street
Optional race-only compounds can be ordered to suit the braking requirements at all levels of severe duty and sustained high heat competition
Hardware and Plumbing
Installation is simple. The kit is a complete bolt-on without the need to modify any of the existing brake or suspension components. Aluminum mounting brackets and premium grade hardware are supplied with detailed installation instructions in every kit.
Stainless steel braided competition flex line kits, with machine crimped ends and the fittings necessary to connect the calipers with the OE chassis bulkhead are included with the kit.
How-To Installation Video can be found here: http://500madness.com/how2video
